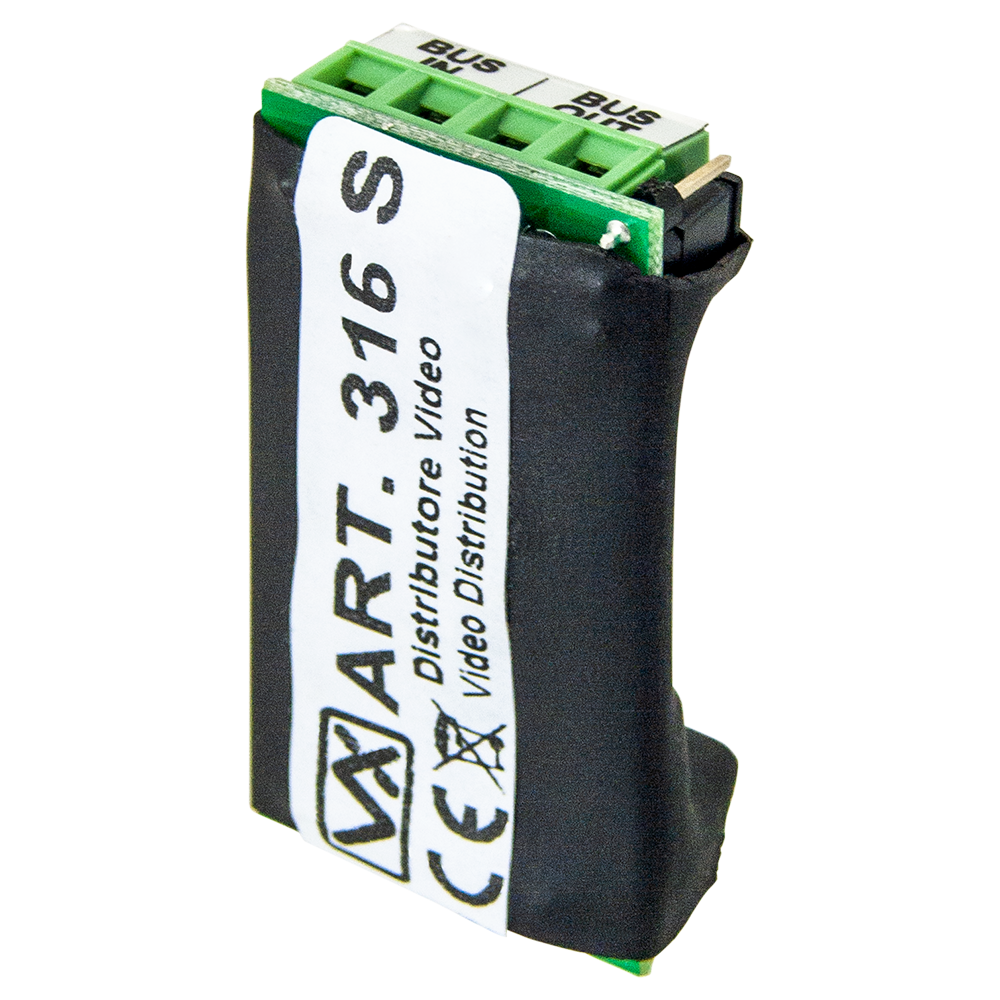

Art. 316S

1 Way video distributor

1 Way video distributor for systems with balanced video signal (4+1 or VX2200).

It allows to connect one videophone on a balanced video network keeping the same line impedance.

Technologies
Technical specifications
Power supply 20Vdc
Power consumption: Stand-by: 5mA
Operating:40mA
Dimensions (mm) 25 x 46 x 15
Mounting Free mounting
Working temperature -20 +60°C
Technical design
Download
Datasheet
PDF | 612.2 Kb
Installation instructions
PDF | 701.2 Kb
