Art. 4850/M

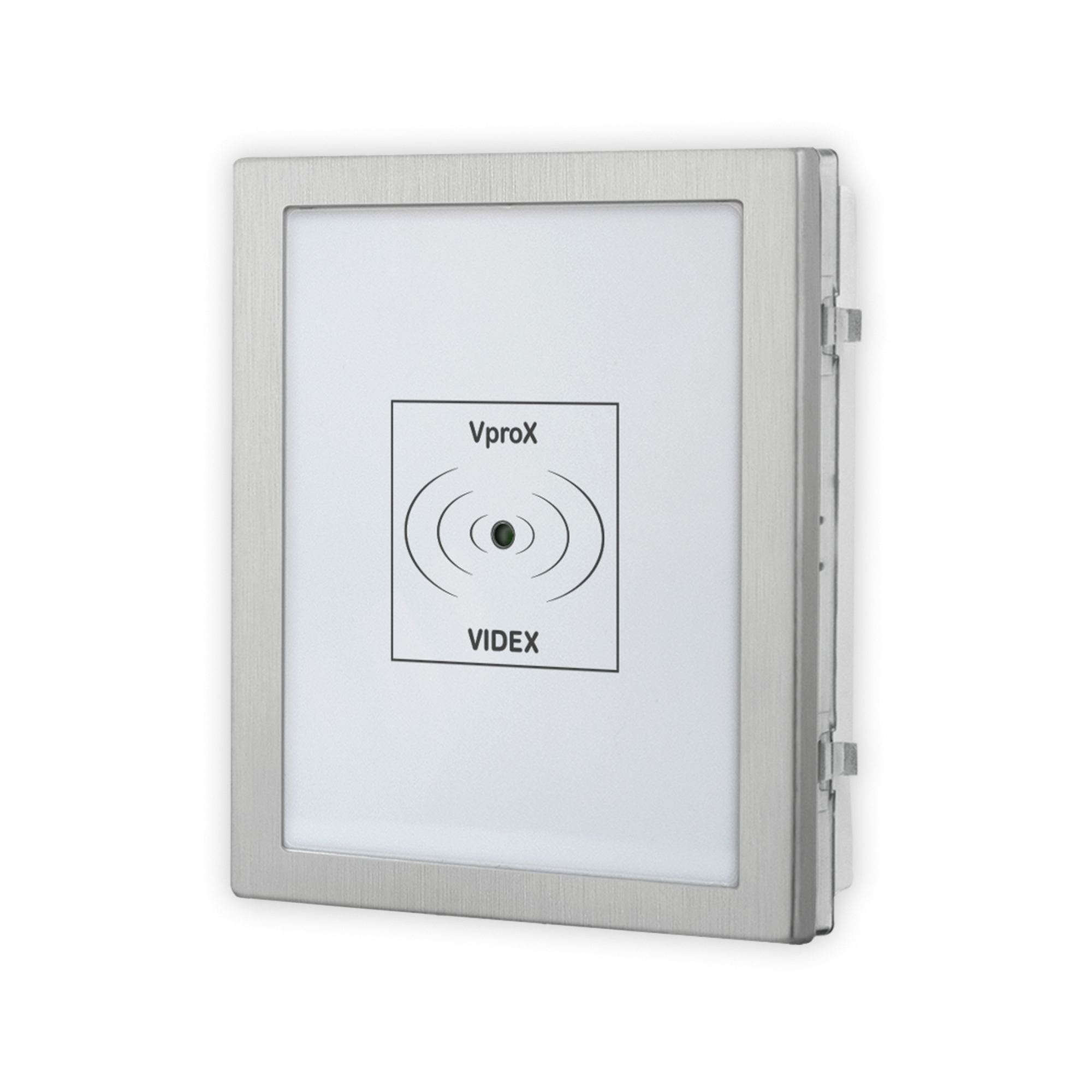

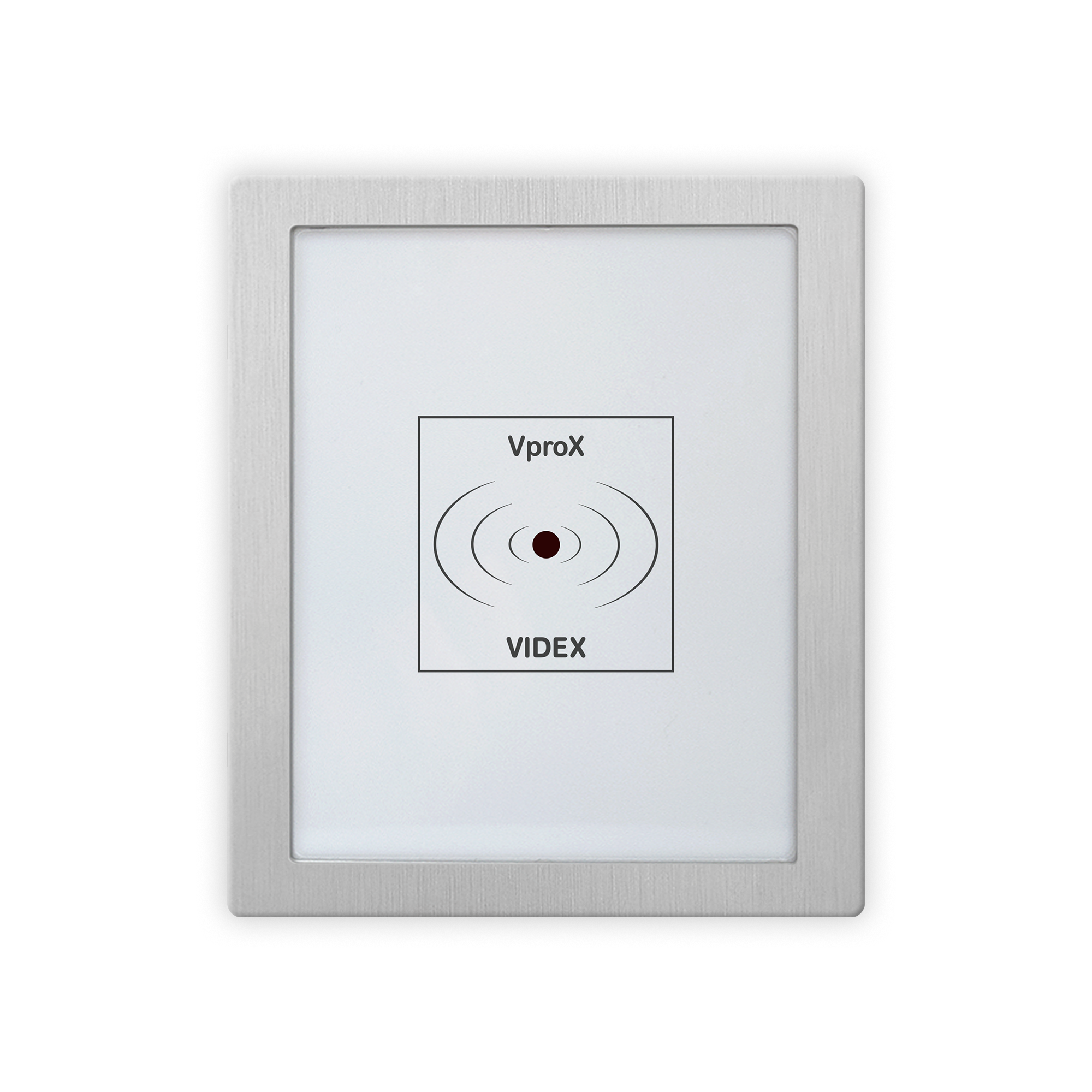

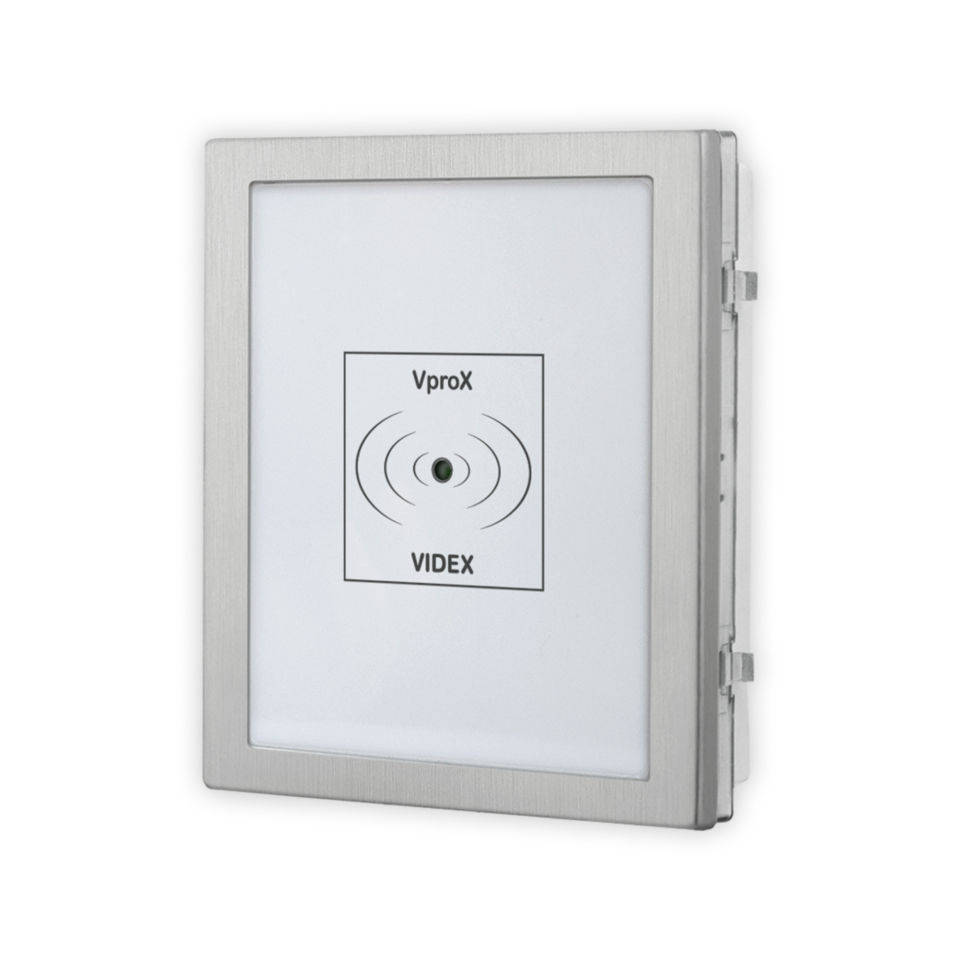

Stand-alone access control module with proximity reader

Stand-alone access control module. 2 LED for status/operation alerts. 1 relays with contacts C, NC, NO (24V AC/DC - 2A) programmable for temporary activation (01 ... 99 seconds) or for switching operation. Configuration of 99 proximity keys that can be paired to the relay. 1 PTE inputs (active/low) to directly control relays. Acoustic and visual alerts during operation. Vandal resistant plate with IK07 and IP65 protection rating. Operating temperature -20°/+60 °C. Power supply 12/24V AC/DC. Dimensions: 103x120x43 mm. Encumbrance 1 module.
Technical design
Installation instructions
