Art. 4042D/M

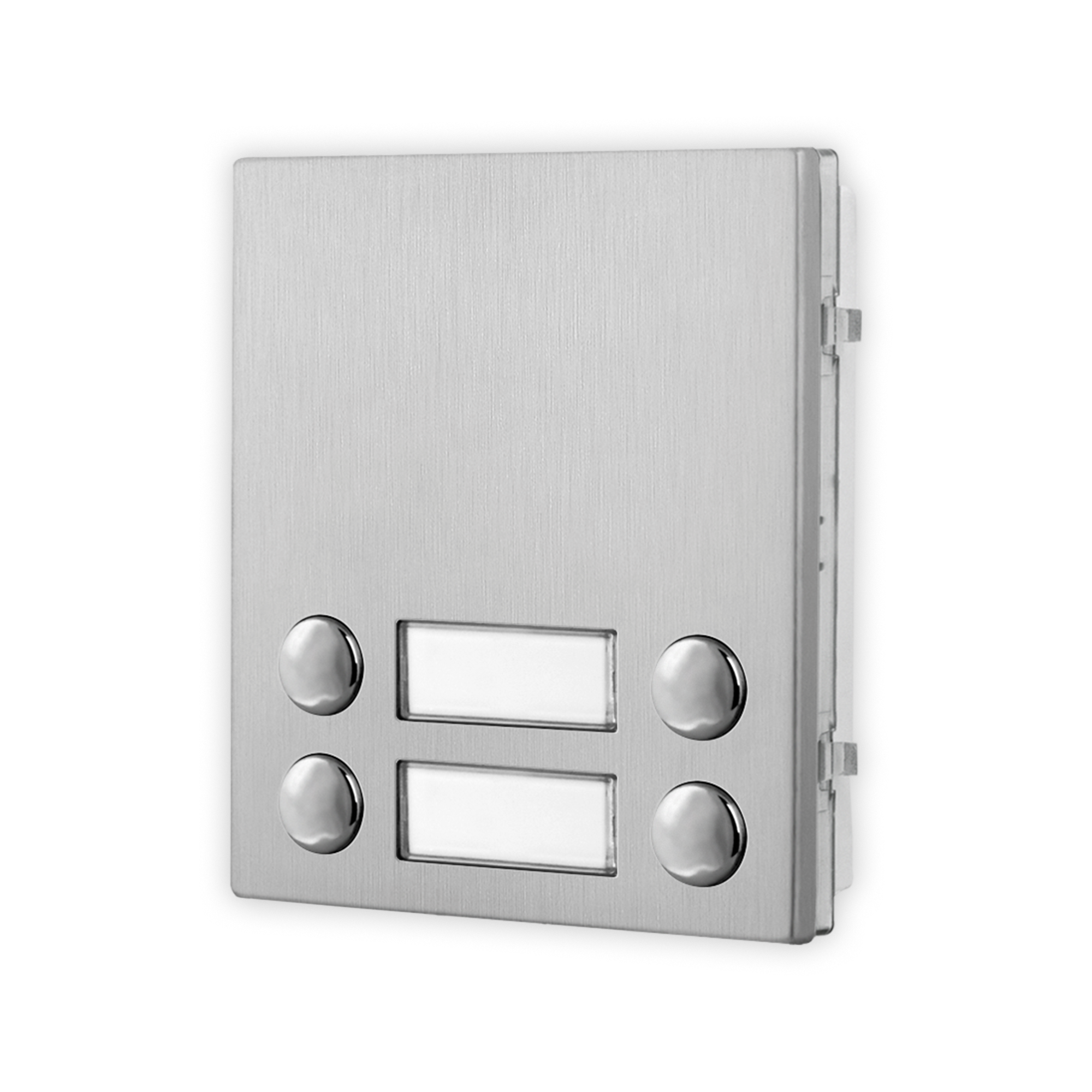

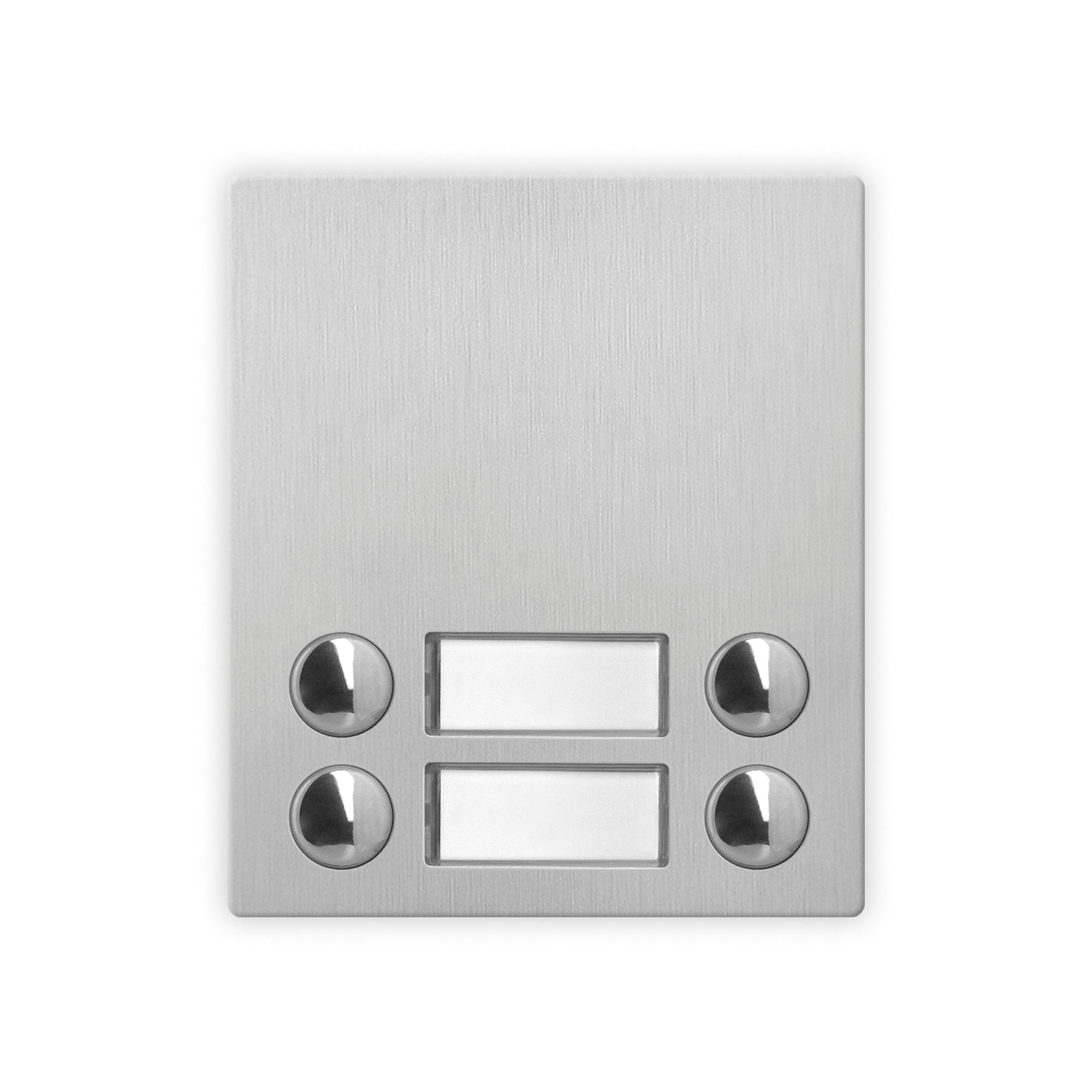

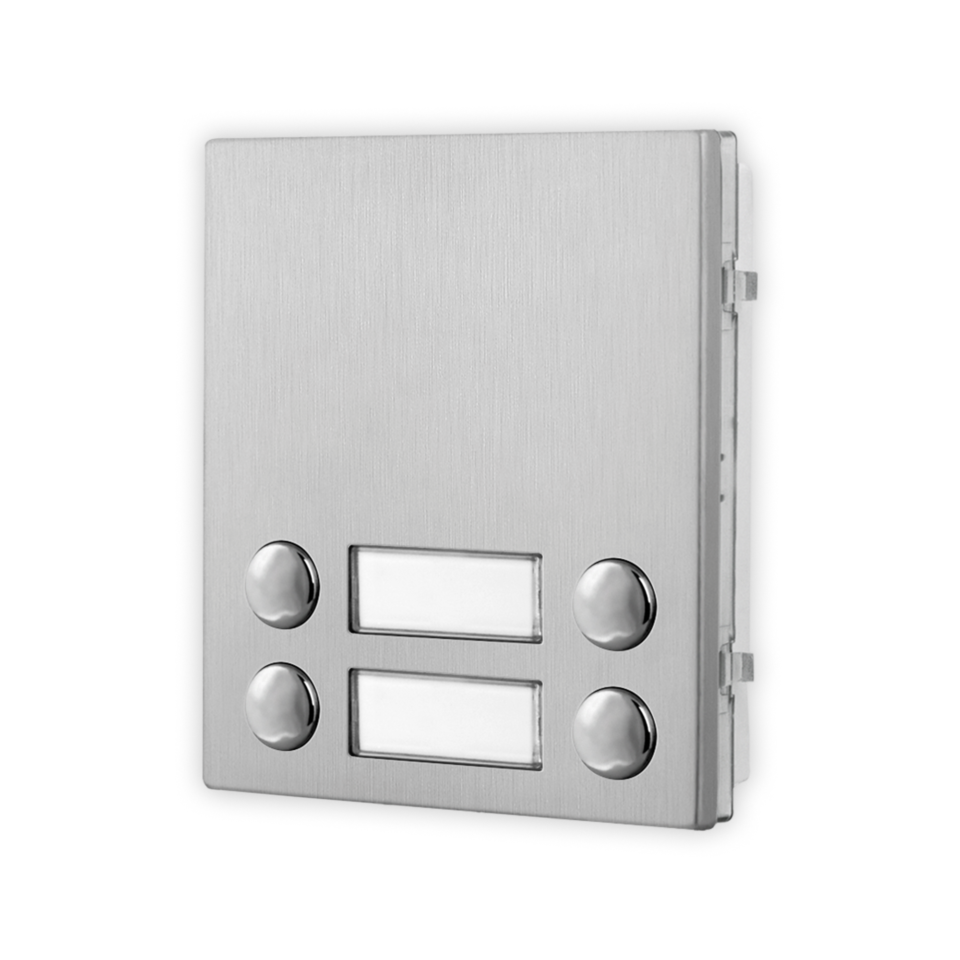

4-button call module on columns rows common to all systems

4-button call module on two columns 4000 Series for IPure, VX2300 and GSM systems. Blue LED name cards backlighting. IDC connector for connection via flat cable (supplied) with other optional modules (maximum 8 modules for a total of 42 buttons). Satin-finished AISI 316 stainless steel plate (marine grade) that provides durability in installations subject to atmospheric agents and in the vicinity of marine environments. Vandal resistant plate with IK07 and IP65 protection rating. Operating temperature -20°/+60°C. Dimensions 103x120x43mm. 1 module.
Technologies
Technical specifications
Download
Datasheet
PDF
Installation instructions
PDF
