Art. 4850R/M

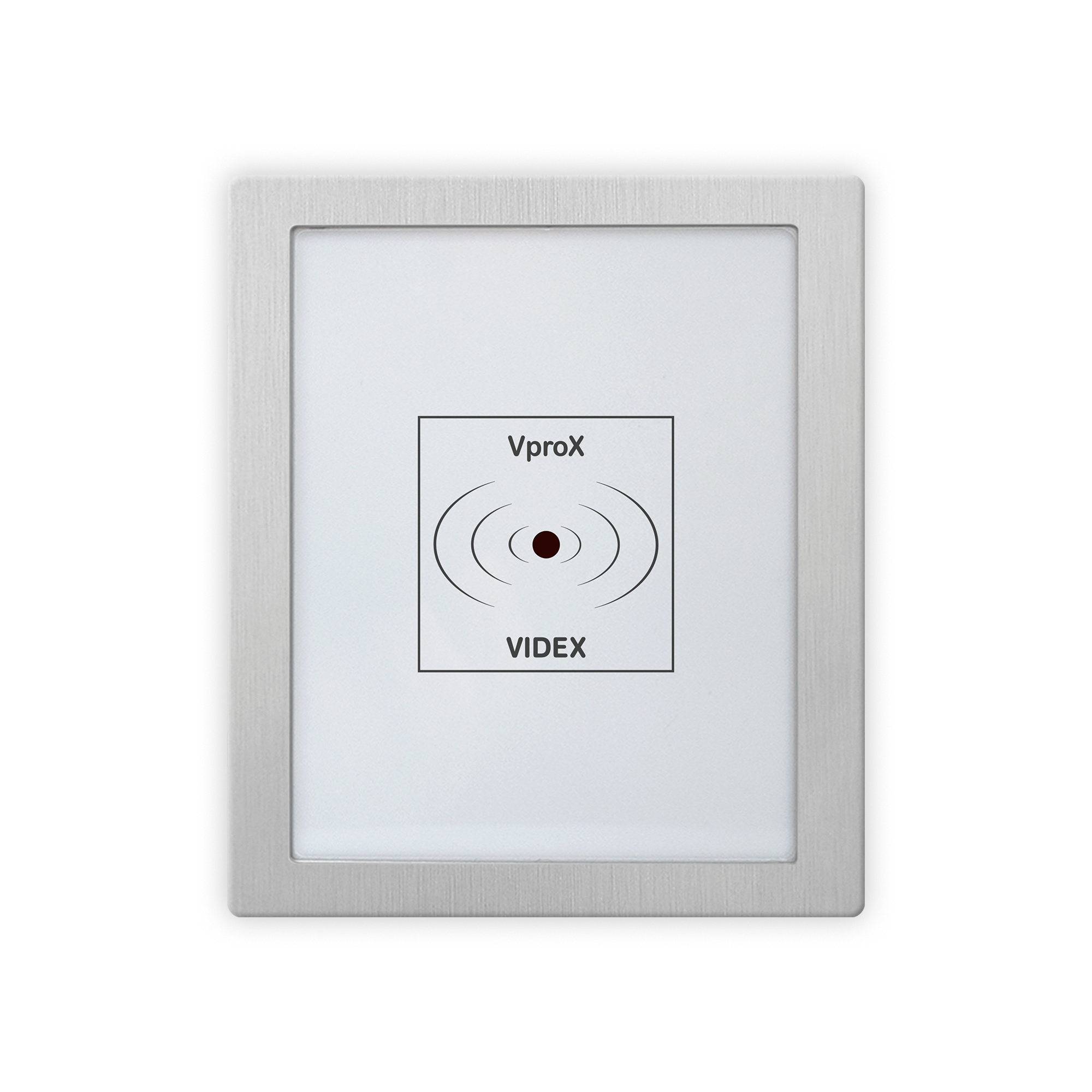

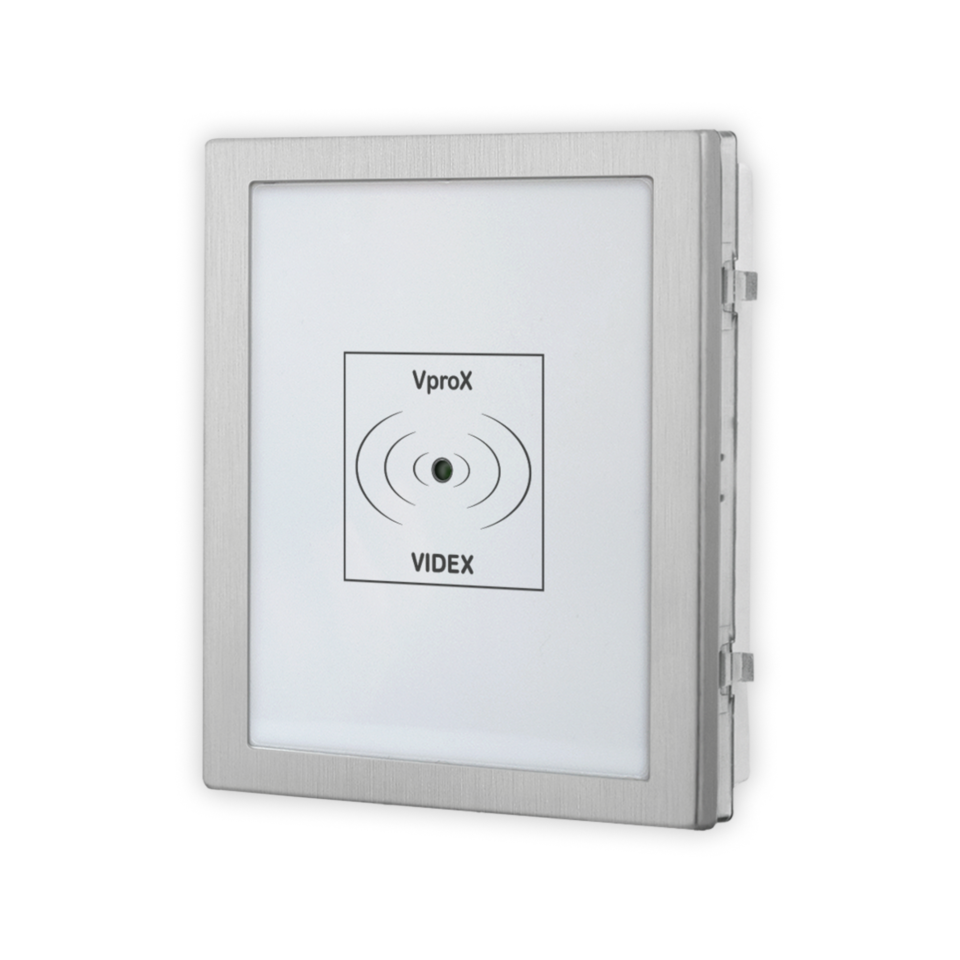

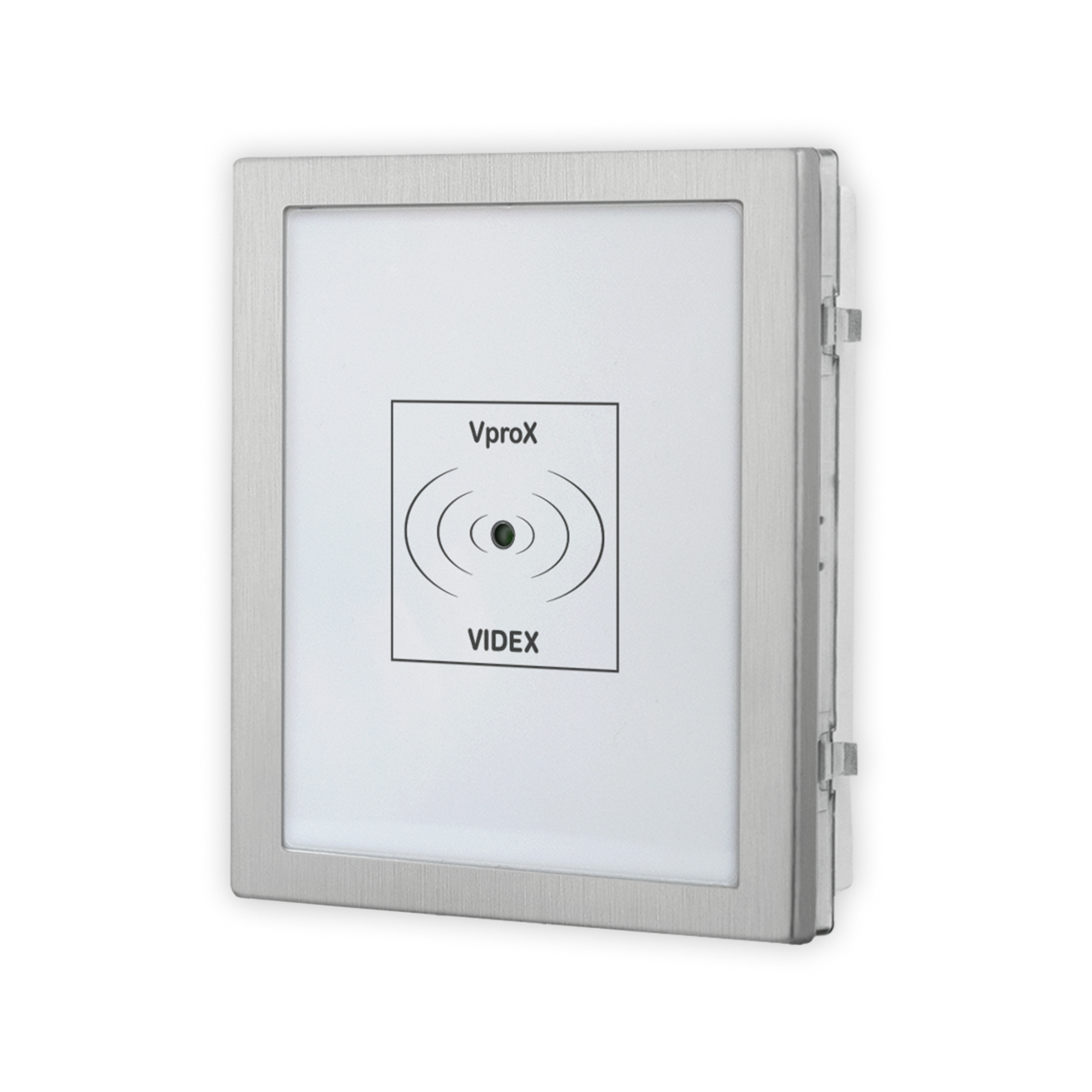

Centralised access control module with proximity reader for IPure and GSM systems

Access control module for IPure and GSM systems. 2 LED for status/operation alerts. 1 relays with contacts C, NC, NO (24V AC/DC - 2A) programmable for temporary activation (01 ... 99 seconds) or for switching operation. 1000 proximity keys that can be combined with the relay through centralisation with 4810/4G audio modules. Configuration through Apps, SMS, cloud and PC software. 1 PTE inputs (active/low) to directly control relays. Acoustic and visual alerts during operation. Vandal resistant plate with IK07 and IP65 protection rating. Operating temperature -20°/+60°C. Power supply 12/24V AC/DC. Dimensions: 103x120x43mm. 1 module.
Technical specifications
Technical design
Installation instructions
