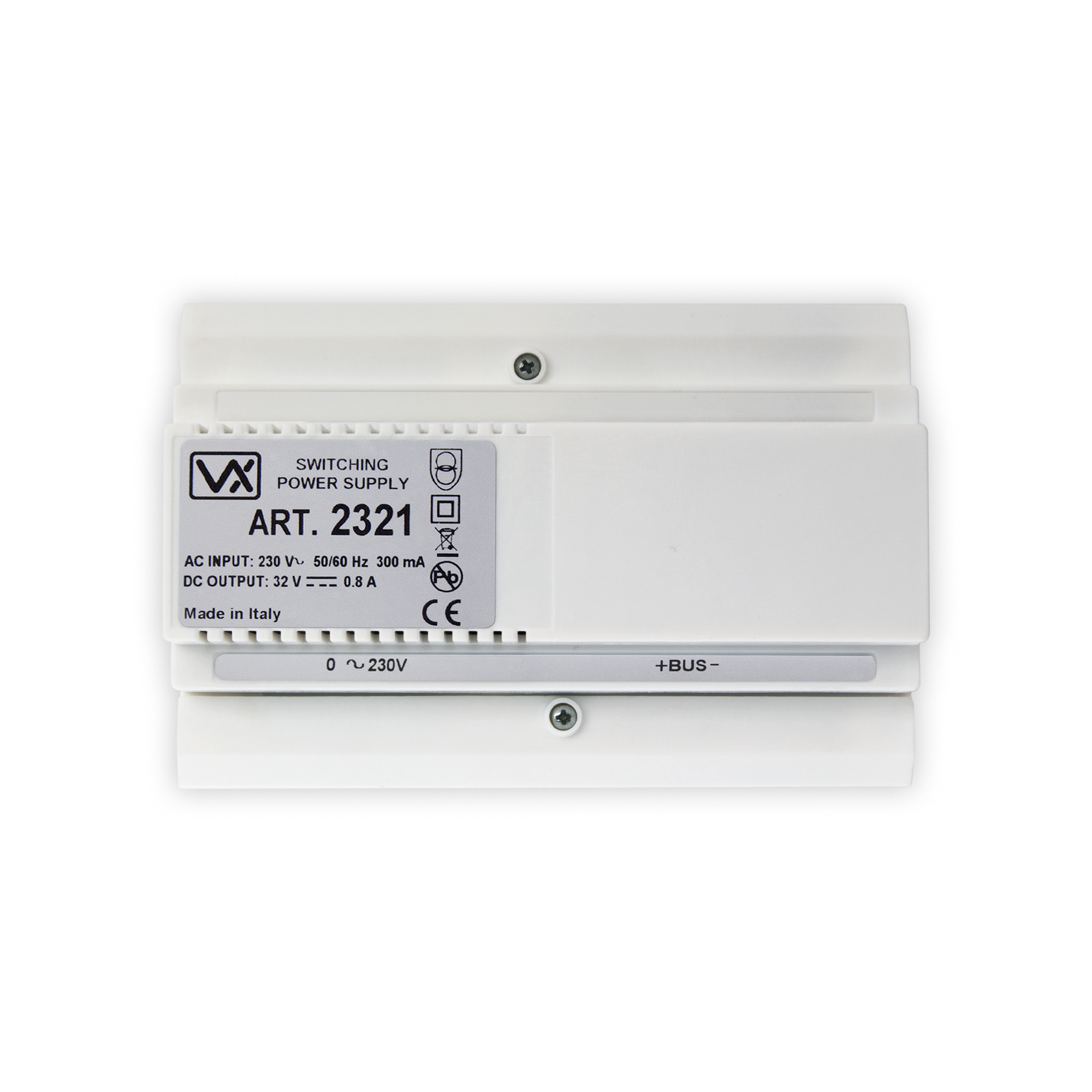

Power supply unit for VX2300 digital system

Description
Details
Download

Description	Power supplied unit
Input Voltage	230Vac 50Hz
Output Voltages	32 Vdc 0.8 A
Housing	9 modules A Type DIN box
Mounting	DIN bar or surface
Dimensions (mm)	157.5x105x65
Function	Power supply for smaller systems with 1 door panel and a maximum of 20 audio-intercoms or videophones.

Art. 2321/P
