Home > Products > 2321S
Art. 2321S

Audio/video power supply

Era Series AccessoriesSystem Accessories
Audio/video power supply for VX2300 system, 1 entrance and maximum 20 devices. Power supply 230 Vac ~ 50/60 Hz, output voltage 35Vdc/0.4A. 3 level voltage output adjustment (35Vdc, 36Vdc and 37Vdc). Power ON LED to indicate power supply status. Wall or DIN rail mountable (6 modules). Dimensions: 105x90x59.5 mm.
Technologies
Technical specifications
Housing 6 module A type DIN box
Mounting DIN bar or directly to the wall
Adjustments Output voltage
(3 levels: 35Vdc, 36Vdc and 37Vdc)
Mains voltage 230 Vac ~ 50/60 Hz
Defaul output voltage 35 Vdc 0.4 A
Working temperature -20 +60°C

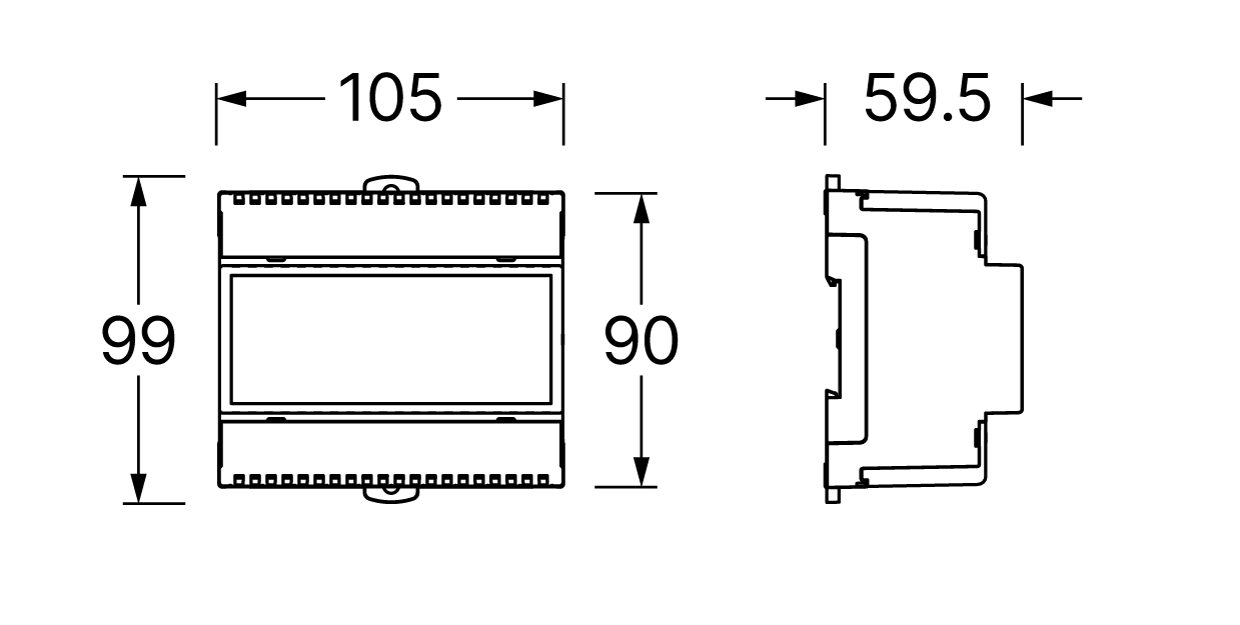

Technical design
Download
Datasheet
PDF | 839.6 Kb
Installation instructions
PDF | 3.5 Mb
