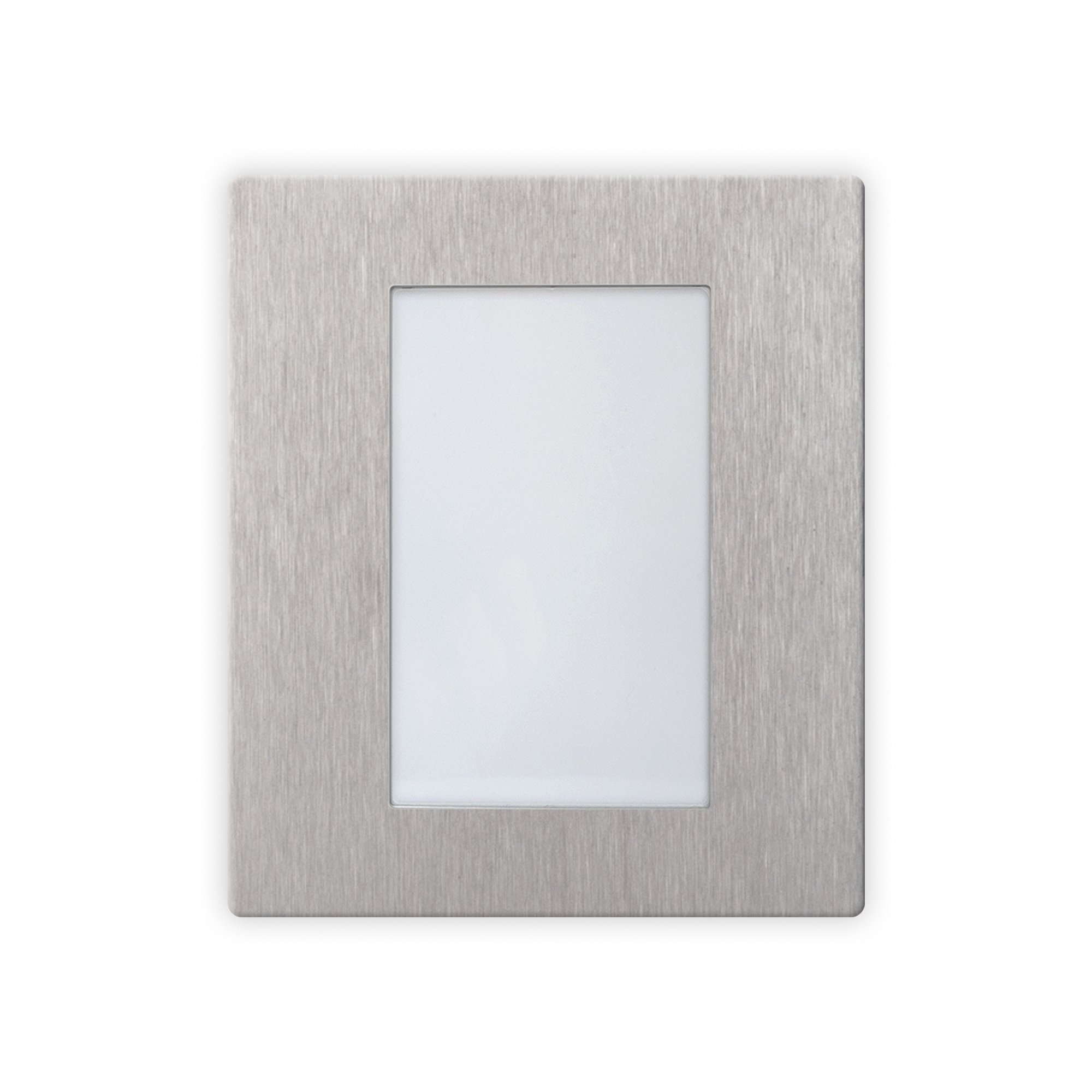

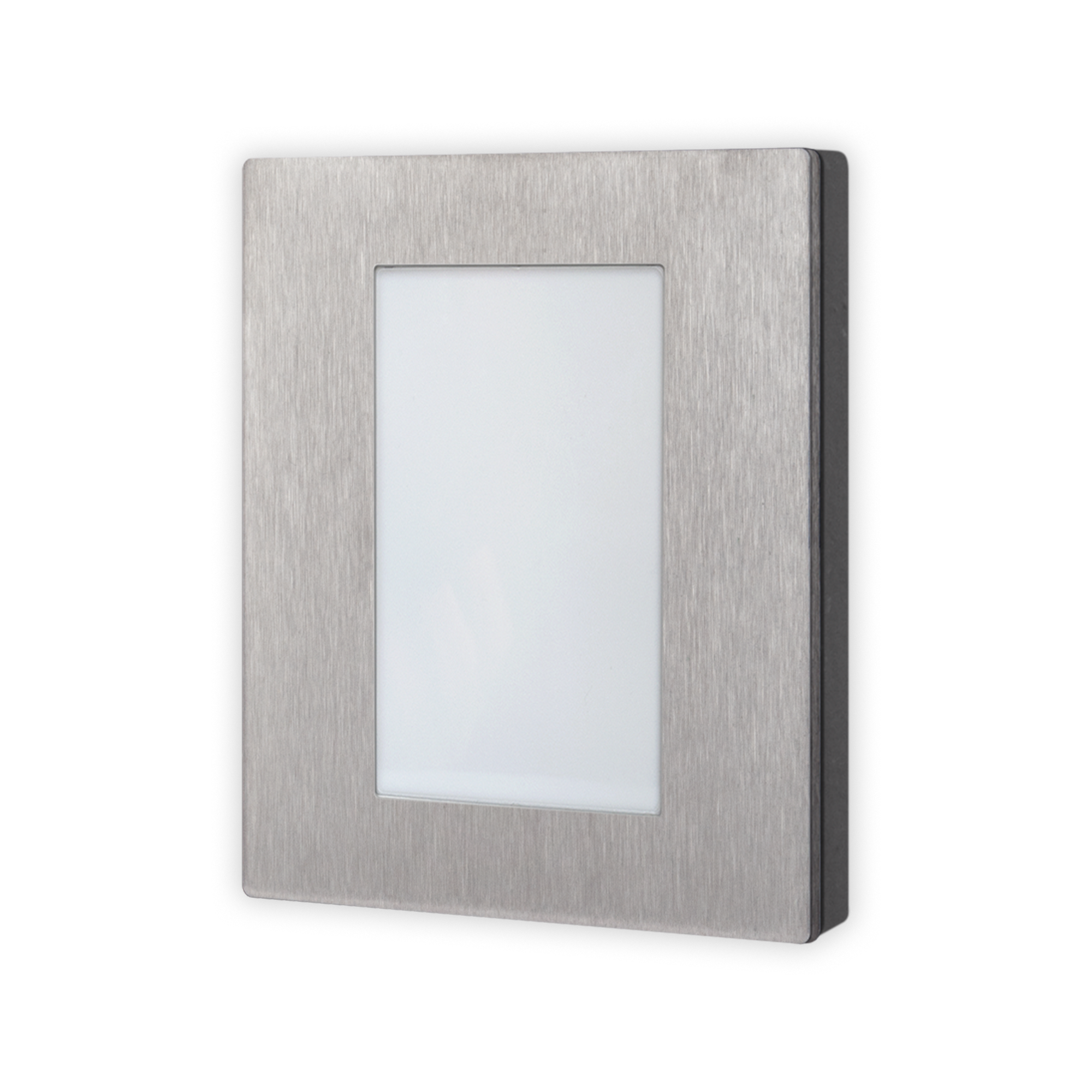

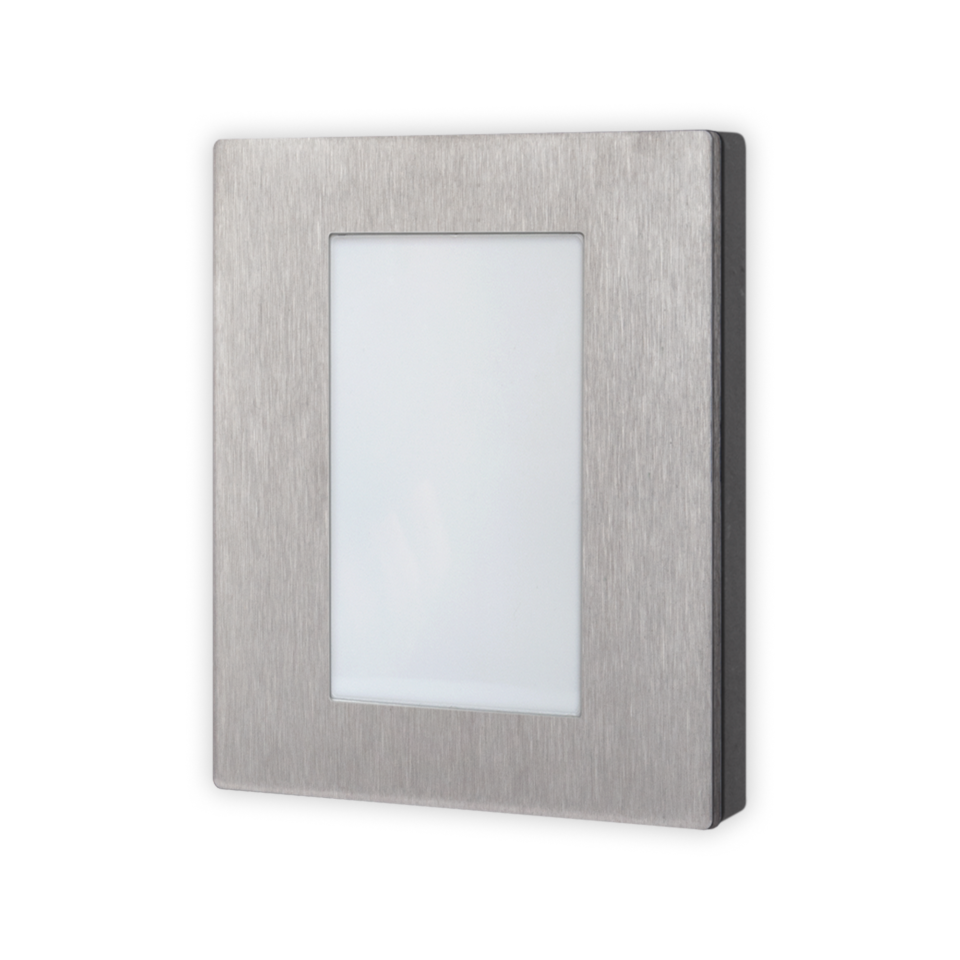

Vandal resistant information module common to all systems

Information module 4000 Series for IPure, VX2200, VX2300 and GSM systems. Blue LED backlighting Frame in AISI 316 brushed stainless steel (marine grade) that provide durability in installations subject to atmospheric agents and near marine environments, transparent polycarbonate cover (52x85mm), writeable card (62x100mm). Vandal resistant plate with IK09 and IP65 protection rating. Operating temperature -20°/+60°C. Power supply 12V DC - 30mA. Dimensions: 103x120x43mm. 1 module.
Technical specifications
Technical design
