Art. CST2310

Concierge switchboard for VX2300 system

Concierge switchboard for VX2300 system with colour TFT LCD monitor and handset, full-duplex speakerphone mode via response button, RTC (real time clock), backlit keyboard with capacitive touch, 2 buttons for direct functions: day and night function on/off. Possibility of installing a second station at the same time (intercom/video intercom) for door opening and response functions when the switchboard is in OFF mode. Missed calls log and management of alarms originating from the apartments. Intercom function with two utilities, selective recall of O.S. (Outdoor Station) audio/video. Activation of the BUS relay Cod.. 2305. 1 x Multi-Colour Status LED. Configuring of the device through screen GUI menu. Polished effect white polycarbonate material. Power supply from BUS or optional 12Vdc with Cod. 323/12. Table base supplied. Possibility of using the default programming for the apartments or to customize it through SW and USB cable supplied.

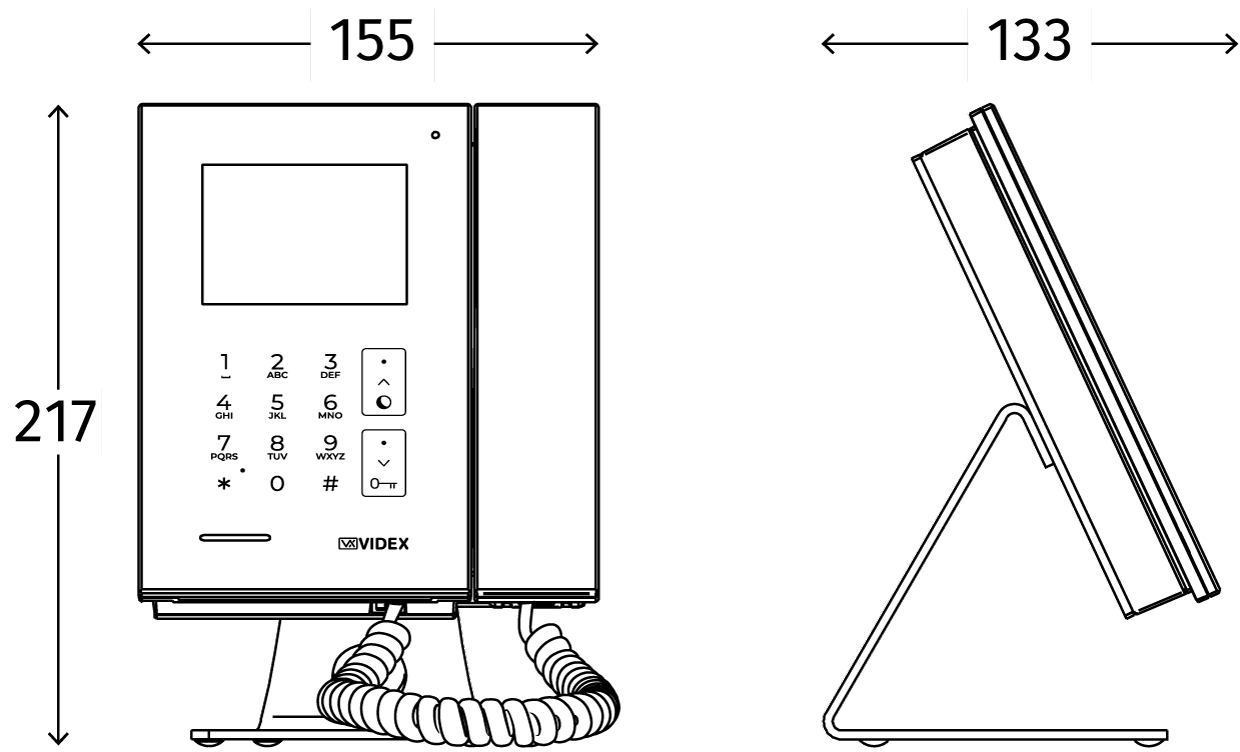

Technical design
Installation instructions
Product features
3" display5"Hands free
