Art. 6798

7" connected video intercom full-duplex audio speaker

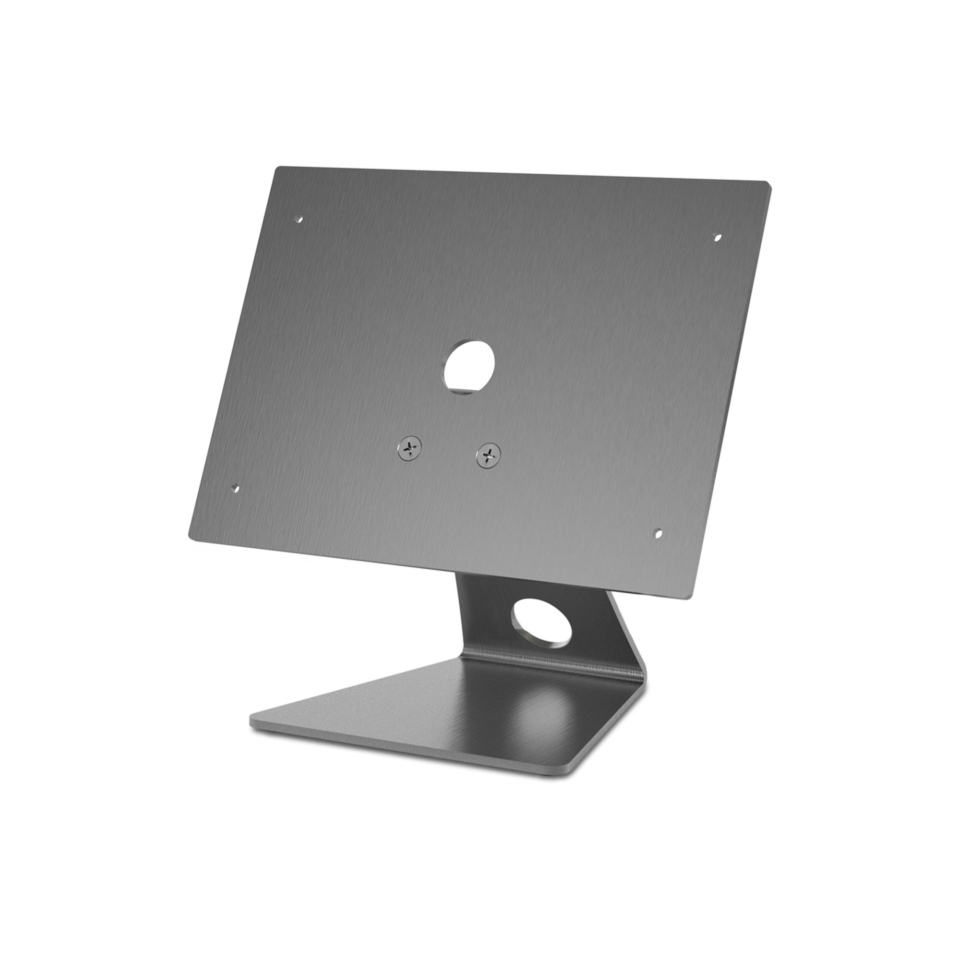

6700 Series video intercom, Embedded Linux operating system, 7" 16/9 high resolution (800x480 pixels) LCD TFT full touch capacitive touchscreen, full-duplex audio speaker, temperature/humidity sensor, 2 active/low inputs, 2 relay outputs that can be activated locally (C, NO - max 35V DC 50mA), 4 tactile buttons that can be configured or dedicated to preset functions: conversation/auto power on, door opener, intercom call, video camera/privacy service switching, etc. Contrast adjustment, brightness and call volume. Local call input, intercom function configurable through GUI menu. Features: privacy programmable through GUI menu, weather widget, switching outdoor audio/video stations or CCTV video cameras implemented with RTSP protocol, event log available locally or through the VIDEX APP, CCTV implementation with PiP feature. Smart chronothermostat function that can be managed locally or through the Videx APP. Integrated browser, Multi-compatibility with protocols: SIP 2.0, RTSP, HTTP. Optional Wi- Fi Dongle module. DNGL. White ABS material. RJ-45 port 10/100 Mbps. IEEE 802.3af (Class 0) PoE Power, or 12V DC - 650mA. Dimensions: 200x150x27mm. Wall-mounted, optional table base cod. 67932.
Technologies
Technical specifications
Technical design
Download
Datasheet
PDF
Installation instructions
PDF
