Art. 4514V

Vandal resistant digital audio/video panel for IPure system

Audio/video panel with 4000 series numerical keypad for IPure system including 1/4" CMOS colour autoiris video camera with 3.3V/lux-sec @550nm (min 0.1lux) sensitivity and 1280x720(720p/1Mpx) / 640x480(VGA) / 352x288(CIF) / 320x240(QVGA) / 176x144(QCIF) resolution, frame rate @30ips. Wide angle view (V80°x170°H). H.264/H.263 +/H.263 video codec, RTP/RTSP video protocol. 4 LED white light for night vision. 1 integrated microphone, 1 integrated speaker, class D 1W amplifier. Full-duplex audio (AEC) feature with digital noise/disturbance reduction. G711 µ-law/A-law audio codec, Videx IPure/RTP audio protocol. Sampling frequency 8kHz. Integrated RFID proximity reader (125kHz: EM4100/EM4102) for use of up to 10,000 proximity keys Cod. 955/T or ISO3 cards, the key configuration takes place through the PC using IPure Wizard software. Graphic display with blue backlight 128x64px. Directory of 10,000 contacts selectable from the alphanumeric keypad and viewable from the display. Wiegand interface (34 programmable bits). Visual alert on the system status display: busy, call in progress, open communication and open door. Acoustic alert for the visually impaired: open communication and open door. Configurable programming of door opening time and conversation. 2 C-NO-NC clean contact series relays (max 24V AC/DC - 2A), 2 standard programmable inputs (PTE). 1 RS-485 bus port. Adjustable microphone and speaker levels. Blue LED button backlighting. Microphone to be housed in the specific compartment of the module holder frames that allows for better sound output even in noisy environments, also eliminating any Larsen effect issues. Videx IPure/CloudNected proprietary protocol. Multi-compatibility with protocols: SIP 2.0 (UDP), 802.1x, RTP, RTSP, HTTP. Satin-finished AISI 316 stainless steel plate (marine grade) that provides durability in installations subject to atmospheric agents and in the vicinity of marine environments. Vandal resistant plate with IK09 and IP65 protection rating. Operating temperature -20°/+60°C. Power PoE 802.3af (Class 0 - 12.95W) or 12V DC ± 15%/400mA. RJ45 10/100 BASE-TX LAN Port with Auto-MDIX, Cat-5 or higher recommended cable. Simplified device configuration through IPure Wizard software. Dimensions: 103x240mm. The size of 2 modules.
Technologies
Technical specifications

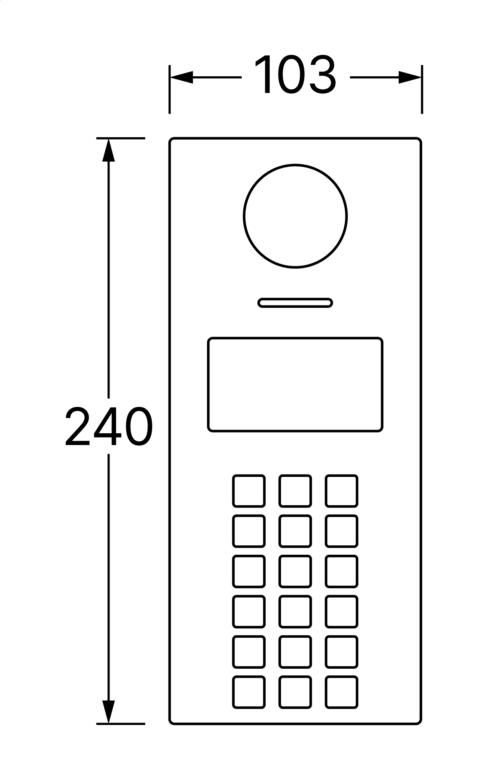

Technical design
