    VIDEX
    Art. 4212R

    Vandal resistant digital call panel for VX2200 digital system with repertory name facility

    • Description
    • Details
    • Download

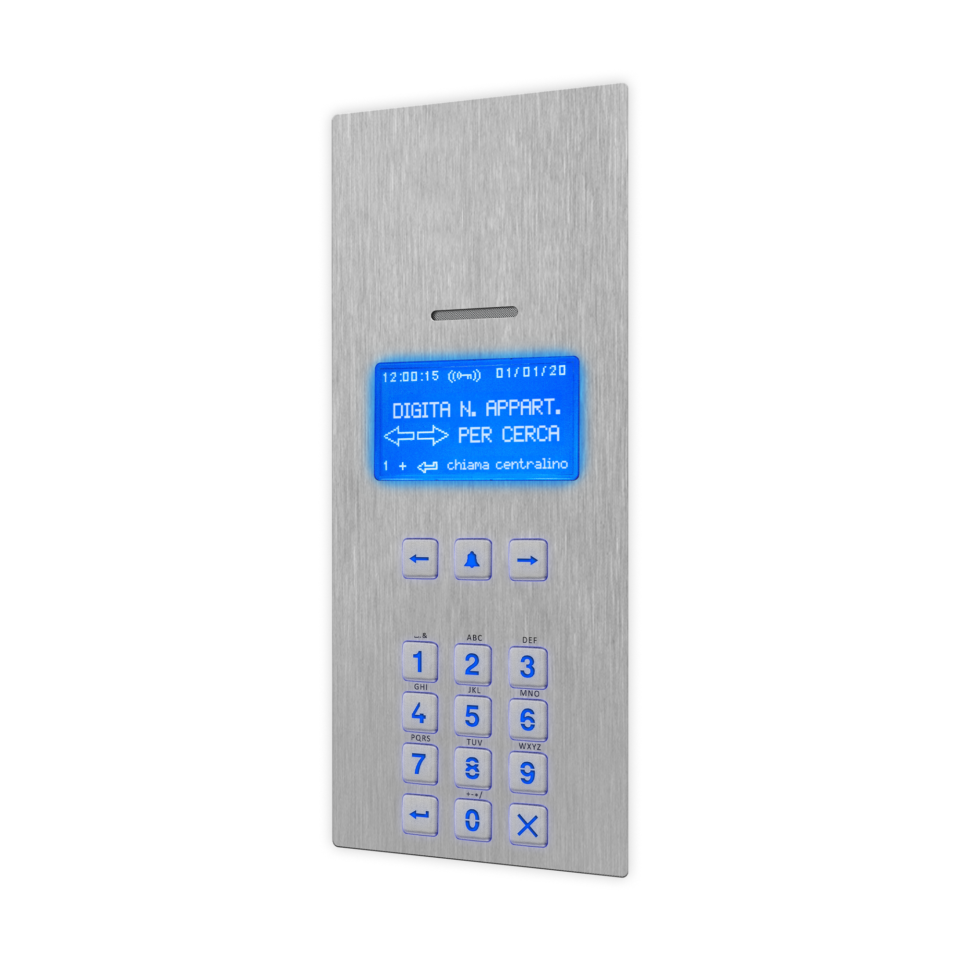

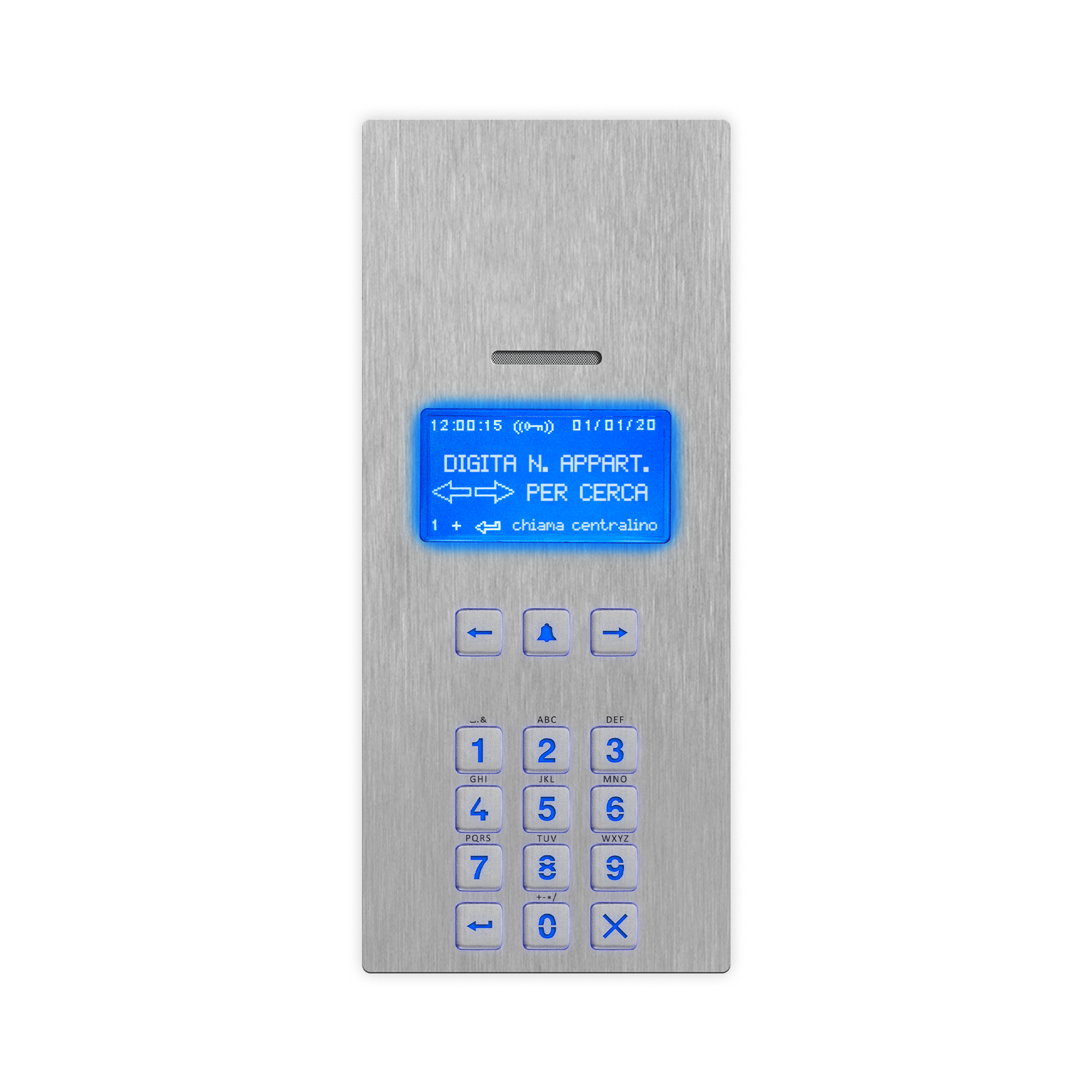

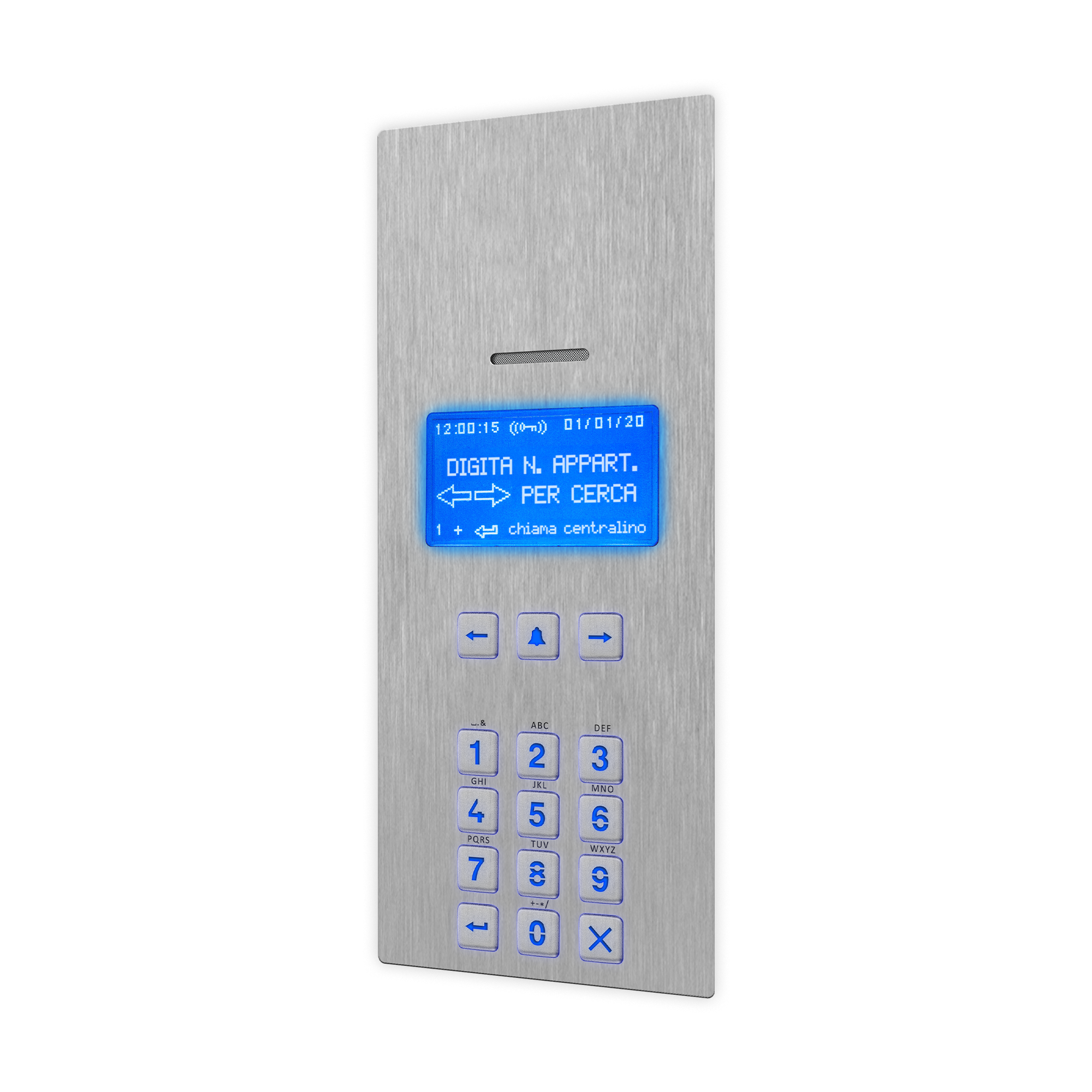

    Vandal resistant digital call panel for VX2200 digital system with repertory name facility

    Audio/Video Audio
    Repertory name facility Yes
    Display/Backlight Graphical 128x64px/Blue
    Built-in proximity key reader Yes 125Khz H4102 2800 Keys
    Programming Keypad/PC
    Interfaces RS-485/WIEGAND/USB
    Plate type Vandal resistant
    Plate finishes Brushed stainless steel
    Keypad buttons 15
    Mounting Modular 4000 Series

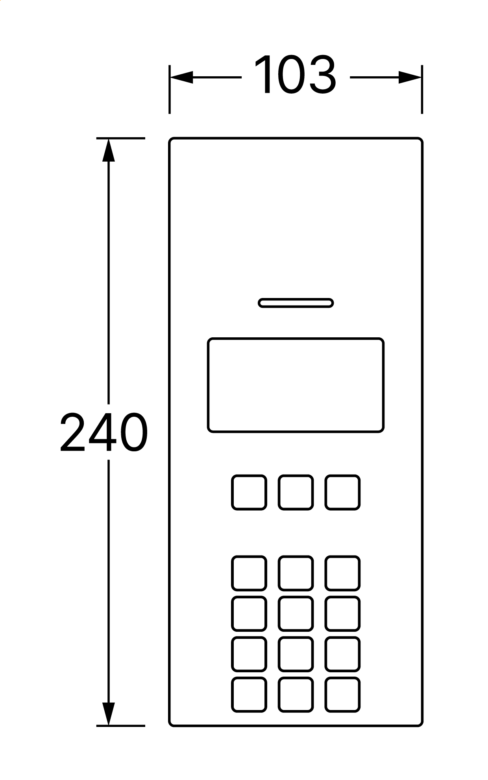

    Size 2 modules
    Speach board opt Available on request
    Max users/User codes 998/2800
    RFID frequency 125KHz
    Access control User code/Proximity key/User code + proximity key
    Events log 4000 events
    Relay 1
    Relay voltages Max 24Vac/dc 2A
    Relay contacts Dry contacts / Capacitor discharge (12Vac/dc 1A max)
    PTE input Yes
    TRD input Yes
    Working voltage 12 Vdc
    Working temperature -10 +50°C
