Art. 4204X-2/M

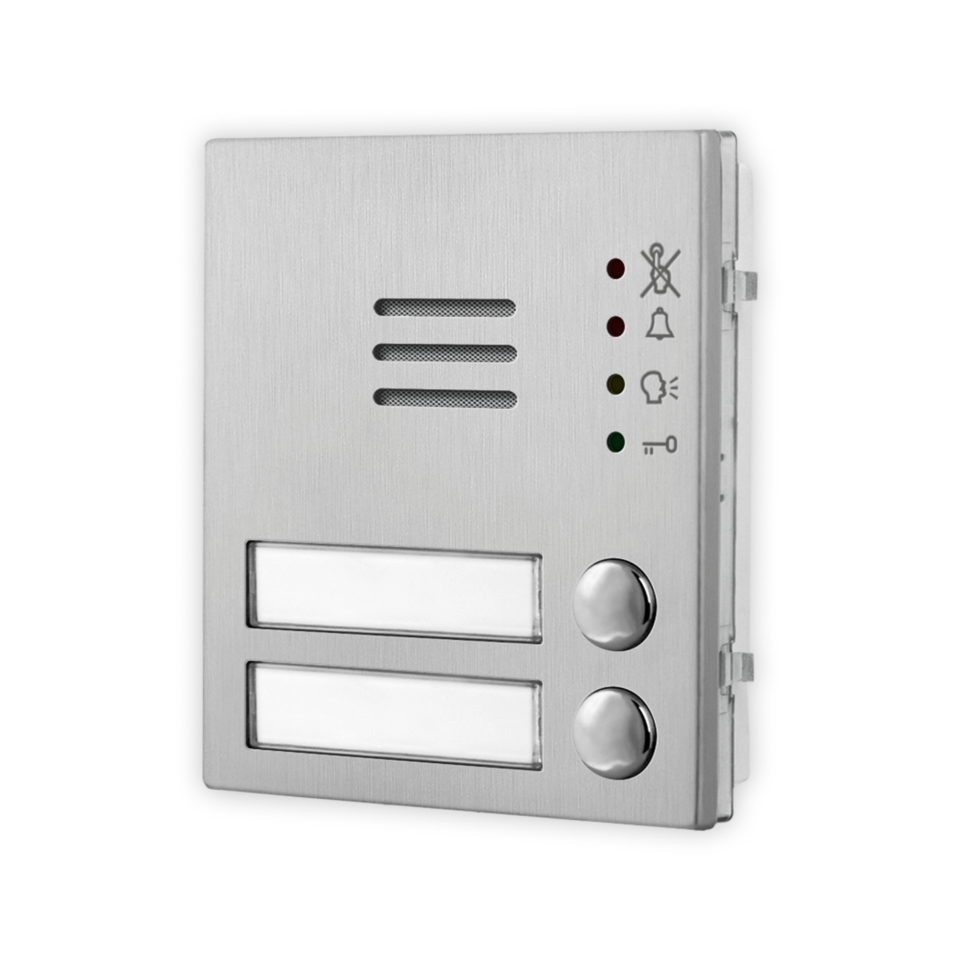

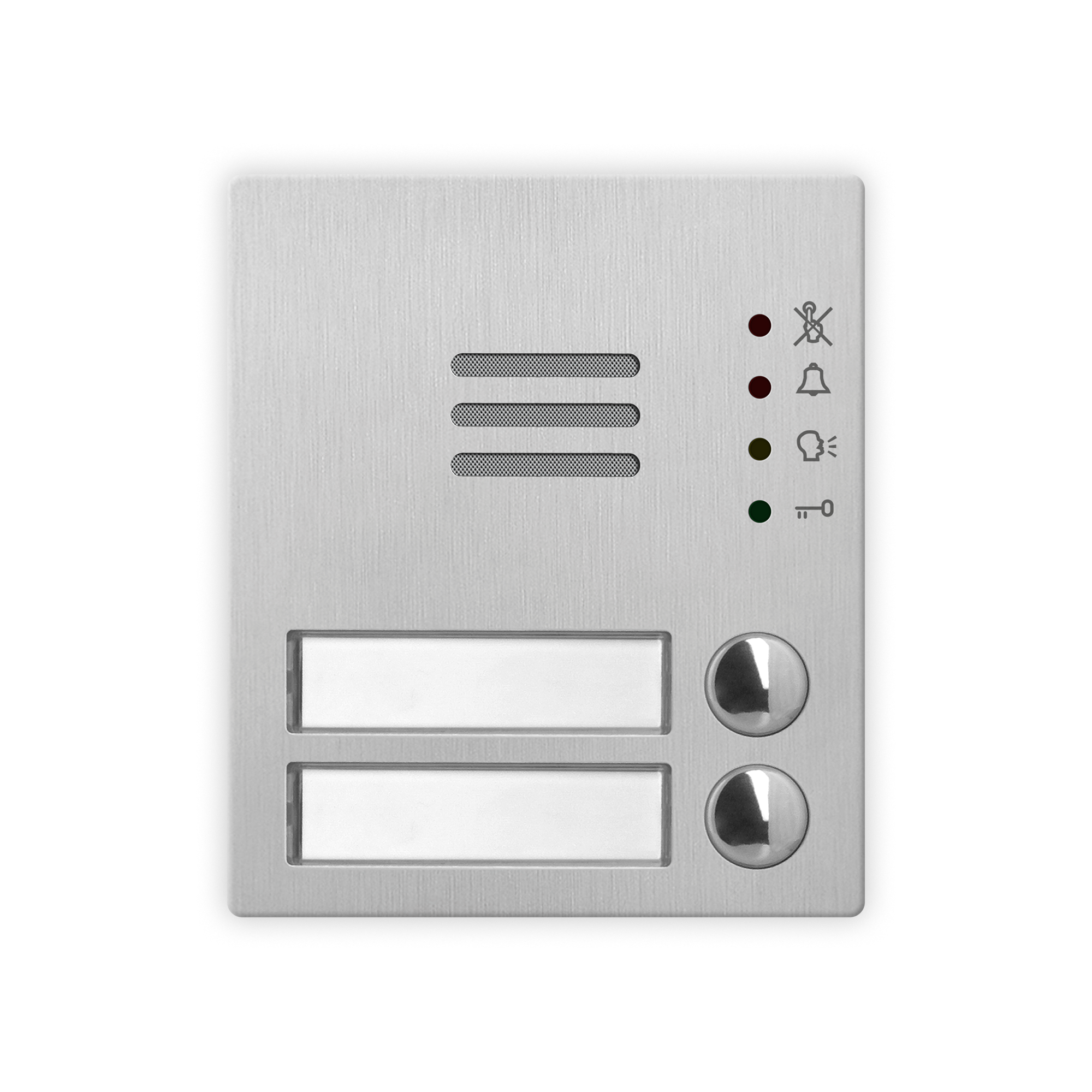

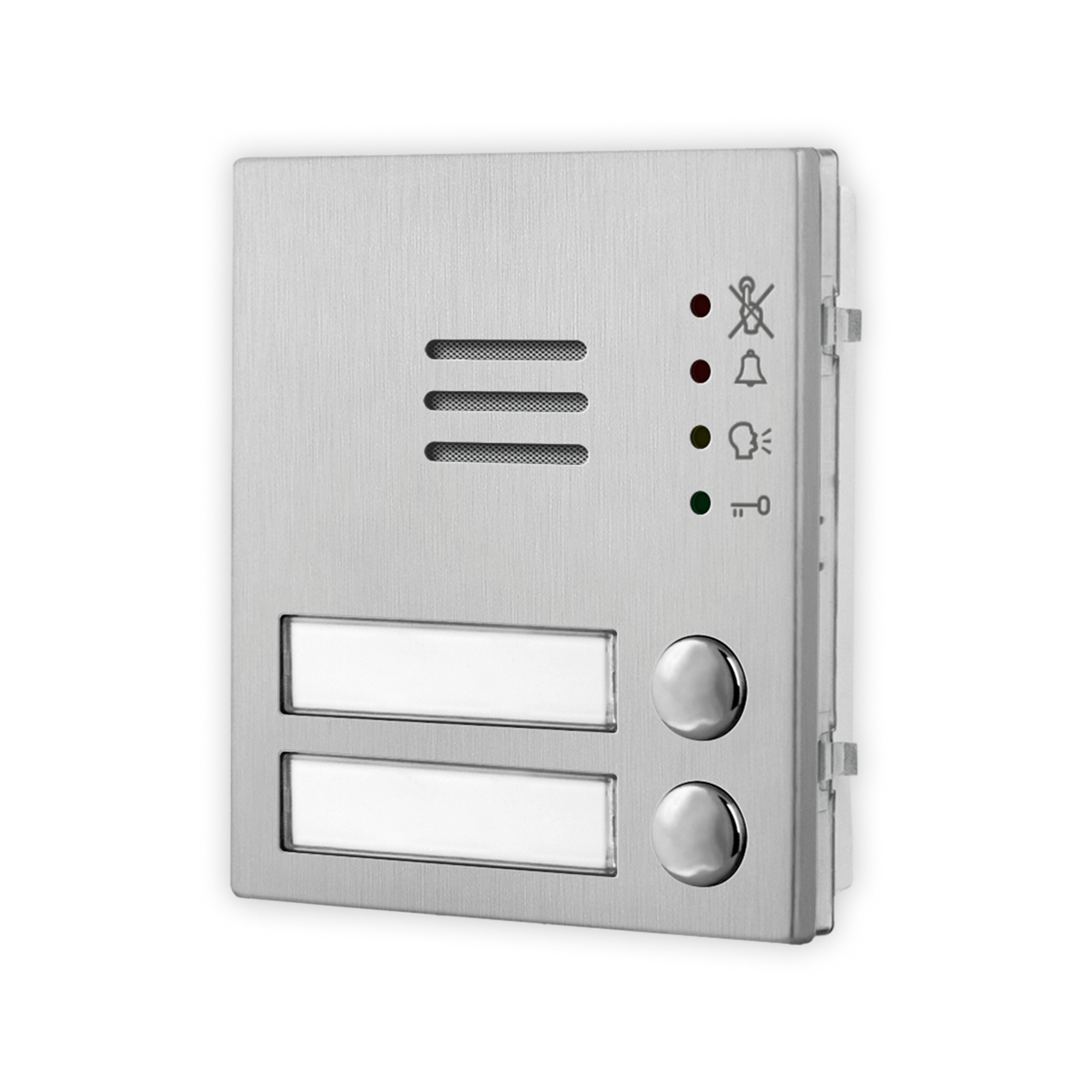

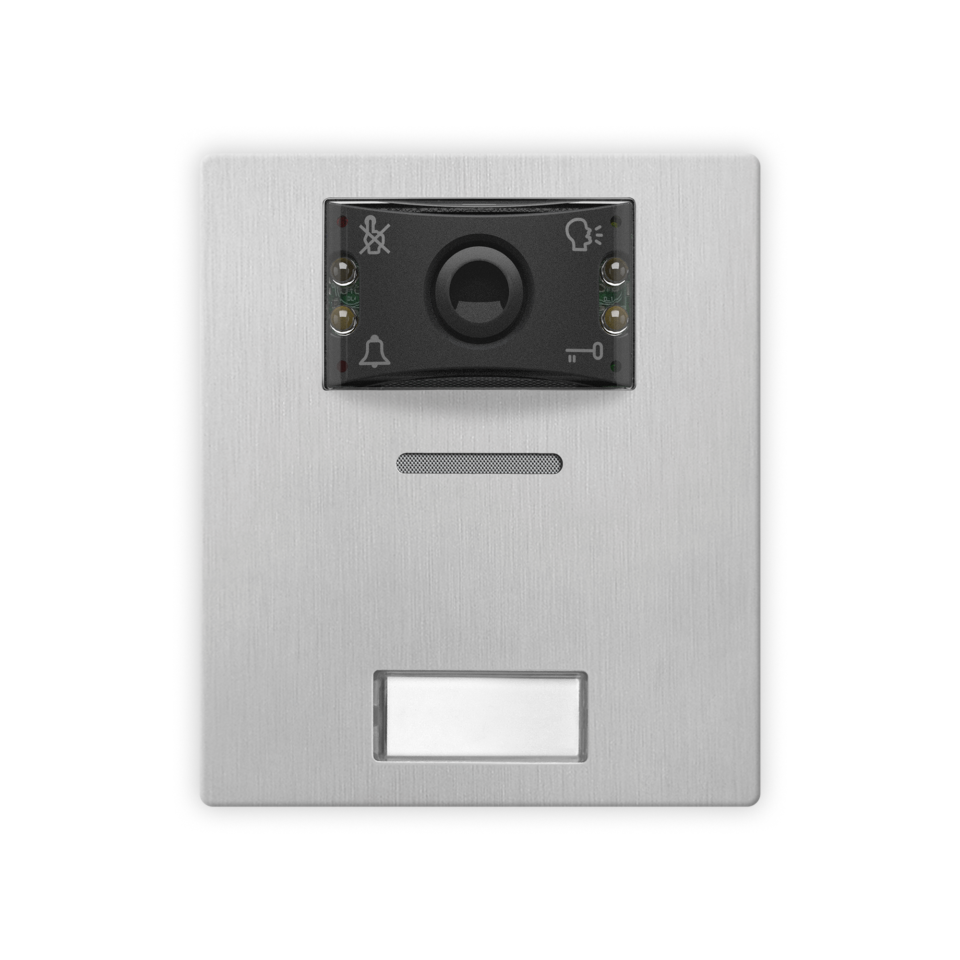

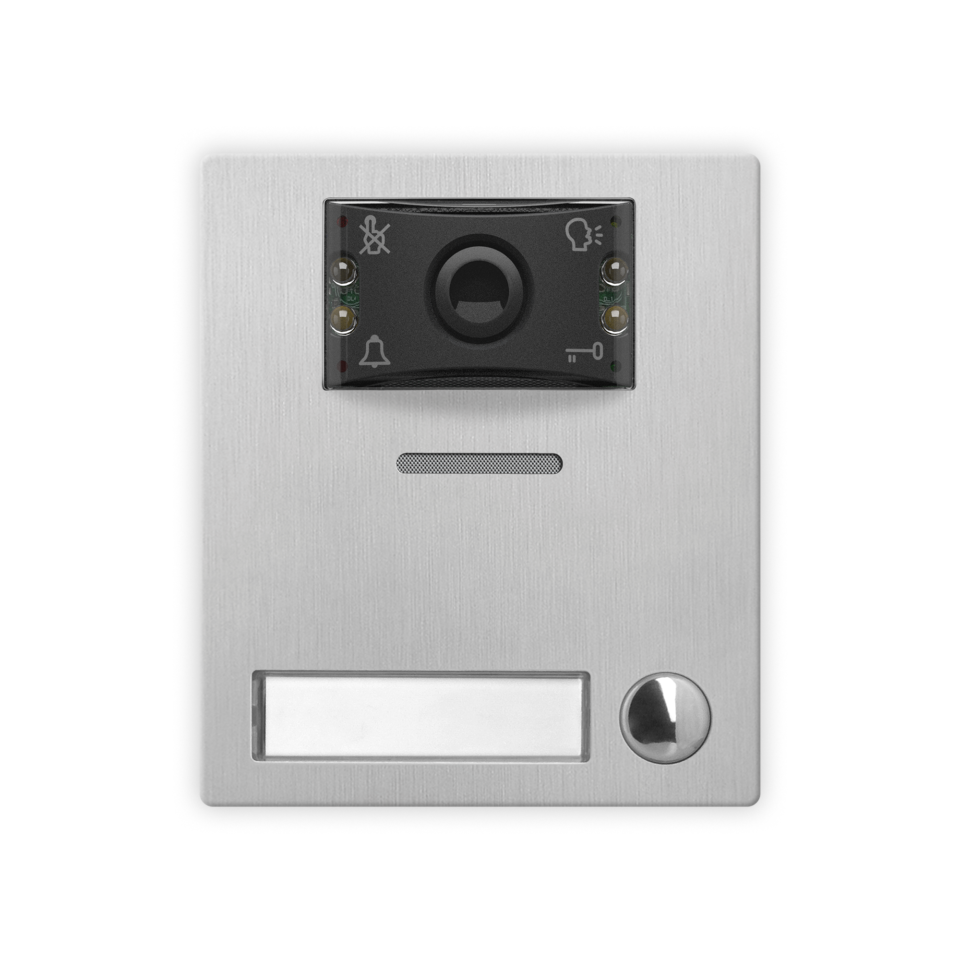

Audio module - 2 buttons for VX2200 system

The Art. 4204X unit is a digital front panel based on a VX2200 BUS intercom system that enables the connection of traditional push buttons. It incorporates the functional interface connections from functional to digital and the speaker unit module with 0, 1 or 2 call buttons. These modules are also equiped with a built-in proximity key reader. This device enables the connection of up to 40 functional push buttons using standard 4000 Series extension module panels Art. 4042, Art. 4043, Art. 4044, Art. 4045 and relevant double button version Art. 4042D, Art. 4043D, Art. 4044D and Art. 4045D. The push buttons already fitted to the module are to be subtracted from the number of those to be inserted, i.e. 2 or 1 according to the model. The module built-in buttons, 1 or 2 (Art. 4204X-1 or Art. 4204X-2) are set as 1st ID PHONE or 1st and 2nd of the addresses group selected by dip-switches 2, 3 and 4. All the modules must be assembled using the 4000 Series flush or surface mounting units. The Art. 4204X can work with any intercom/videophone for VX2200 digital system.The Art. 4204X unit is a digital front panel based on a VX2200 BUS intercom system that enables the connection of traditional push buttons. It incorporates the functional interface connections from functional to digital and the speaker unit module with 0, 1 or 2 call buttons. These modules are also equiped with a built-in proximity key reader. This device enables the connection of up to 40 functional push buttons using standard 4000 Series extension module panels Art. 4042, Art. 4043, Art. 4044, Art. 4045 and relevant double button version Art. 4042D, Art. 4043D, Art. 4044D and Art. 4045D. The push buttons already fitted to the module are to be subtracted from the number of those to be inserted, i.e. 2 or 1 according to the model. The module built-in buttons, 1 or 2 (Art. 4204X-1 or Art. 4204X-2) are set as 1st ID PHONE or 1st and 2nd of the addresses group selected by dip-switches 2, 3 and 4. All the modules must be assembled using the 4000 Series flush or surface mounting units. The Art. 4204X can work with any intercom/videophone for VX2200 digital system.
Technologies

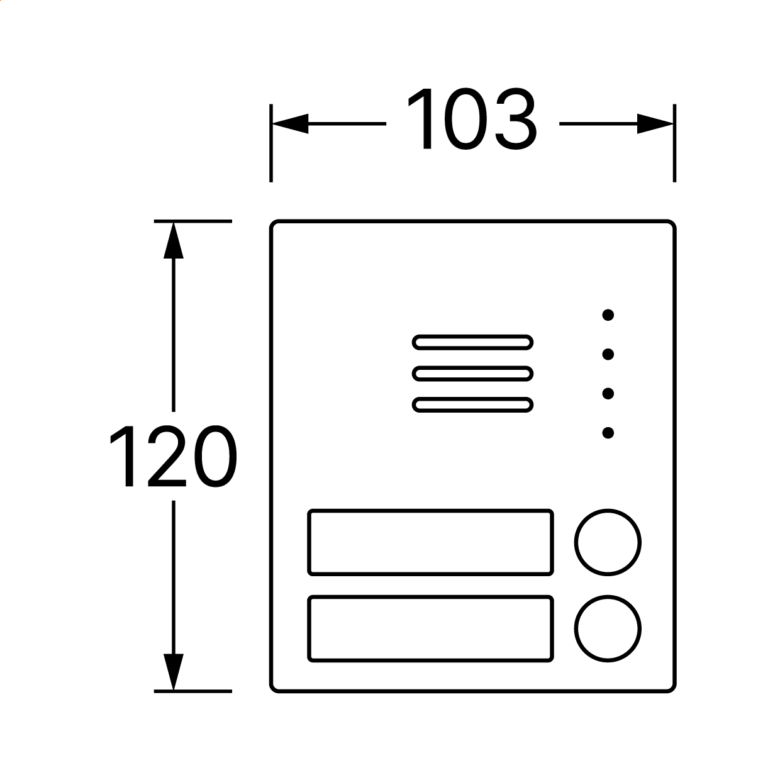

Technical design
Download
Installation instructions
PDF
