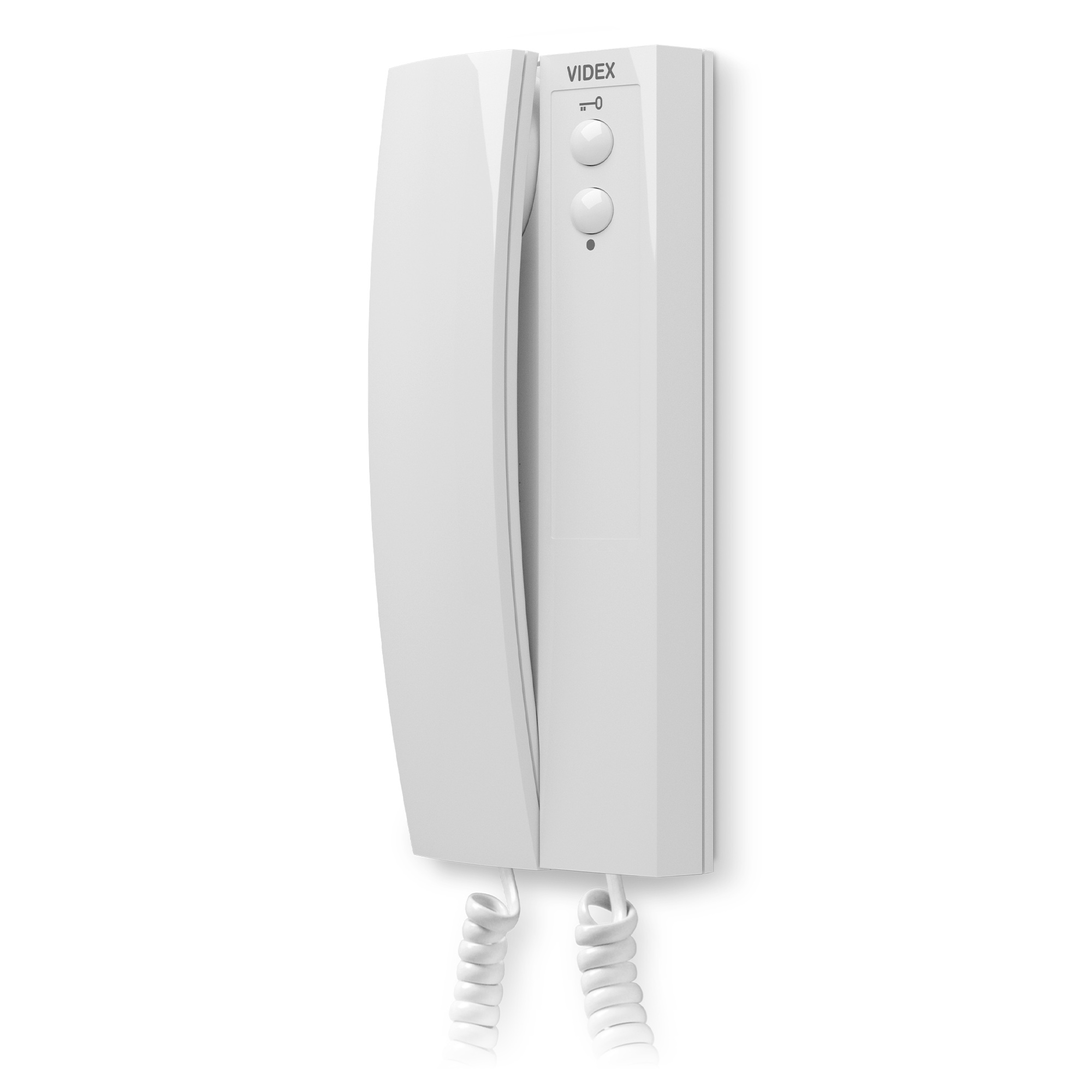

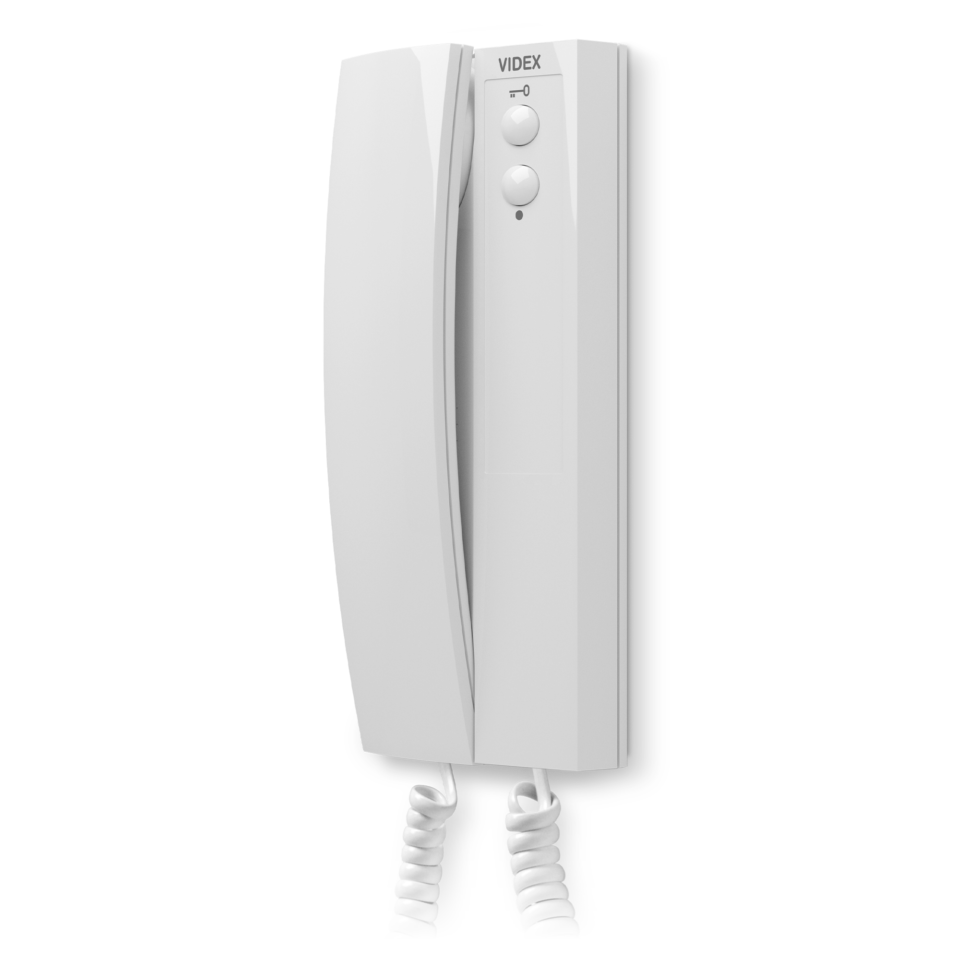

Digital intercom based on the “2 Wire BUS”, it includes a door-open button and a service button plus an electronic call tone with a 3 level volume control which can be adjusted by the user. Internally, the intercom, has an 8 way dip-switch to set the PHONE ID, a terminal board with 6 terminals for connection to the bus and other connections. Microphone volume adjustment (only available from revision R0.2).
With the 3000 Series it is possible to connect up to 180 intercoms on the same system. If required it is possible to give the same address for a max of 3 intercoms (for applications that require more units in the same apartment). The push button is also “call to concierge” (if there is one on the system) push button, while the push button works on the terminals SW and SW (Max 30Vac/dc 0,2A) of the terminal board.Digital intercom based on the “2 Wire BUS”, it includes a door-open button and a service button plus an electronic call tone with a 3 level volume control which can be adjusted by the user. Internally, the intercom, has an 8 way dip-switch to set the PHONE ID, a terminal board with 6 terminals for connection to the bus and other connections. Microphone volume adjustment (only available from revision R0.2).
With the 3000 Series it is possible to connect up to 180 intercoms on the same system. If required it is possible to give the same address for a max of 3 intercoms (for applications that require more units in the same apartment). The push button is also “call to concierge” (if there is one on the system) push button, while the push button works on the terminals SW and SW (Max 30Vac/dc 0,2A) of the terminal board.
